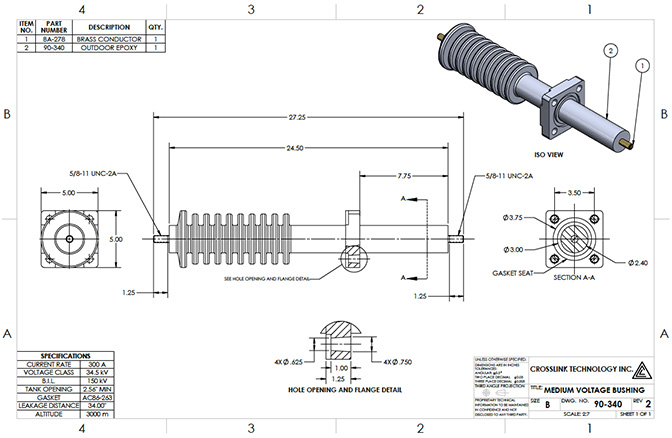

Bushing 90-340



Bushing 90-340 Bushing 90-340



Current rating: 300 A
Voltage class: 34.5 KV
B.I.L: 150 KV
Tank opening: 2.56" MIN
Insulator material: Outdoor Epoxy
Conductor material: Brass

.



Epoxy Transformer Bushing 90-340
